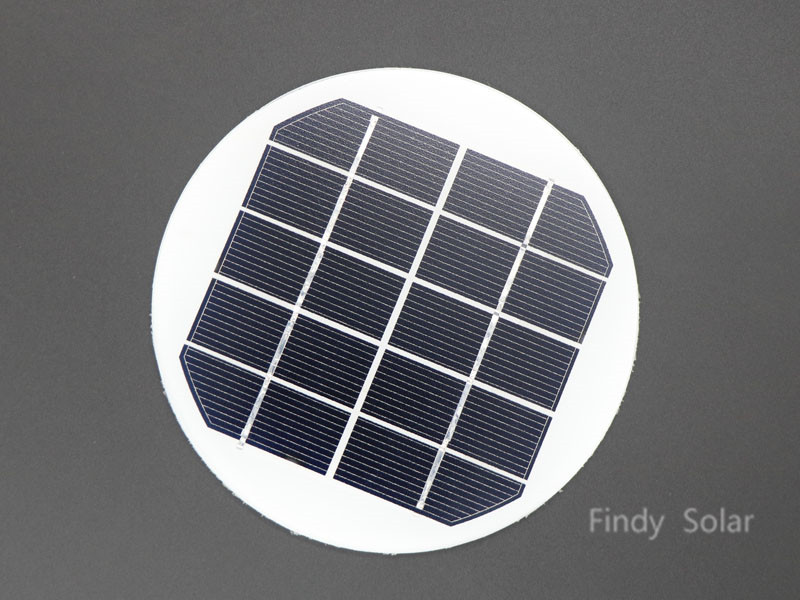

This 2W 5V solar panel is built with high-efficiency mono solar cells. It not only has stable output power, but also has good low light performance. This round solar panel is encapsulated with tempered glass, which makes it durable and long service life. This 5V solar panel is also waterproof, UV resistant and scratch resistant.

Applications:

This round solar panel is widely used in wireless sensors, IoT devices,  marine devices, traffic signs, LED lights and other small electronics etc.

Item No.: FYD-CS006

Technical Details

Output:

Peak Power (Pmax):                   2W

Voltage at Pmax (Vmp):              5V

Current at Pmax (Imp):               400mA

Open Circuit Voltage (Voc):        6V

Short Circuit Current (Isc):          430mA

Power Tolerance:                        ±5%

Dimension:  D=140mmx4.5mm

Cell Type:  High Efficiency Mono Solar Cell

Number of Cells: 10 pcs

Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)

Product Warranty:                     5 Years

Storage temperature:              -20°C ~ 45°C

Working temperature:              -40°C ~ 65°C

Standard Test Conditions (STC):  1000W/m2, 1.5AM, 25°C Cell temperature
