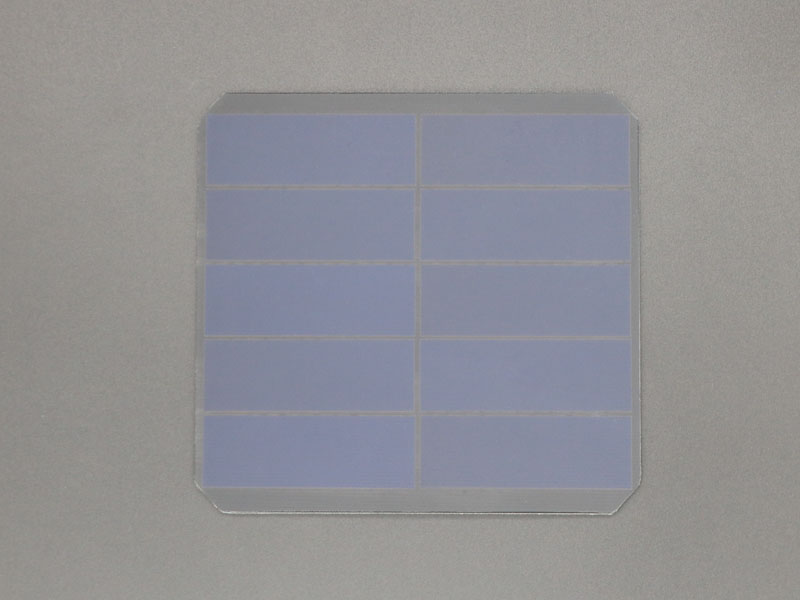

This 2.5 watt solar panel 5 volt is built with high-efficiency back contact solar cells (IBC solar cell), delivering up to 23% efficiency. There are no grid lines on the surface of the solar panel. In addition to providing stable and consistent power output, it also has excellent low light performance. This custom solar panel is encapsulated with ETFE film, which makes it lightweight and thin. This 2.5 watt solar panel is also waterproof, UV and scratch resistant.

Applications:
This solar panel is widely used in wireless sensors, IoT devices,  crafts, toys, LED lights and other small electronic devices.

Item No.: FYD-BC0012

Technical Details

Solar Panel Output:
Peak Power (Pmax):                    2.5W
Voltage at Pmax (Vmp):              5V
Current at Pmax (Imp):                500mA
Open Circuit Voltage (Voc):        6V
Short Circuit Current (Isc):          550mA
Power Tolerance:                        ±5%


Solar Panel Size:  134x130x2mm
Solar Cell Type:  High Efficiency IBC Solar Cell
Number of Cells: 10 pcs
Construction: ETFE/ EVA / Solar Cell / EVA / PCB

Product Warranty:                     2 Years
Storage temperature:              -20°C ~ 45°C
Working temperature:              -20°C ~ 65°C
Standard Test Conditions (STC):  1000W/m2, 1.5AM, 25°C Cell temperature
