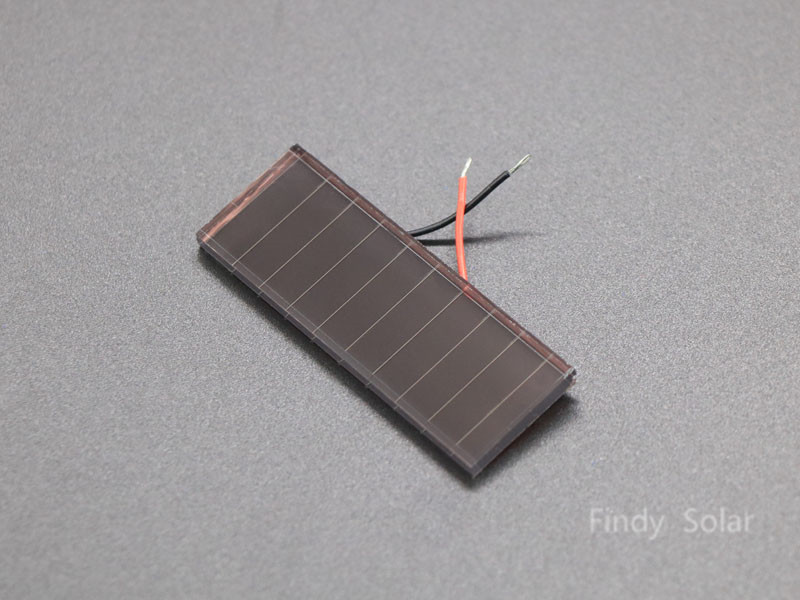

This is an amorphous silicon solar cell with electrical performance of 4.8V 8mA . It has excellent response to low, cloudy and diffusive illumination. It has a standard thickness 3.2mm. This type of solar cell is usually used in low-power electronic products. The cost is also relatively low.

Applications:
This solar panel is widely used in low-consumption electronic devices such as calculators, wireless sensors, ETC devices,  auto darkening welding helmet, body scale, remote control, thermometer, keyboard, parking meter, chargers, crafts, toys and other small electronics etc.

Artikel-Nr.: FYD-AS0014

Technische Details

Ausgabe:

Maximale Leistung (Pmax):           38 mW

Spannung bei Pmax (Vmp):          4,8V

Strom bei Pmax (Imp):                  ≥8mA

Leerlaufspannung (Voc):               ≥3,2 V (200Lux)

Kurzschlussstrom (Isc):                 8,8 mA

Leistungstoleranz:                        ± 5%

Abmessung:                                55 x 20 x 3,2 mm

Zelltyp:                                        Solarzelle aus amorphem Silizium

Produktgarantie:                        2 Jahre

Lagertemperatur:                      -5 ° C ~ 30 ° C Relative Luftfeuchtigkeit: ≤60%

Arbeitstemperatur:                    -20 ° C ~ 85 ° C Relative Luftfeuchtigkeit: ≤85%

Standardtestbedingungen (STC): 1000 W / m², 1,5AM, 25 ° C Zelltemperatur
