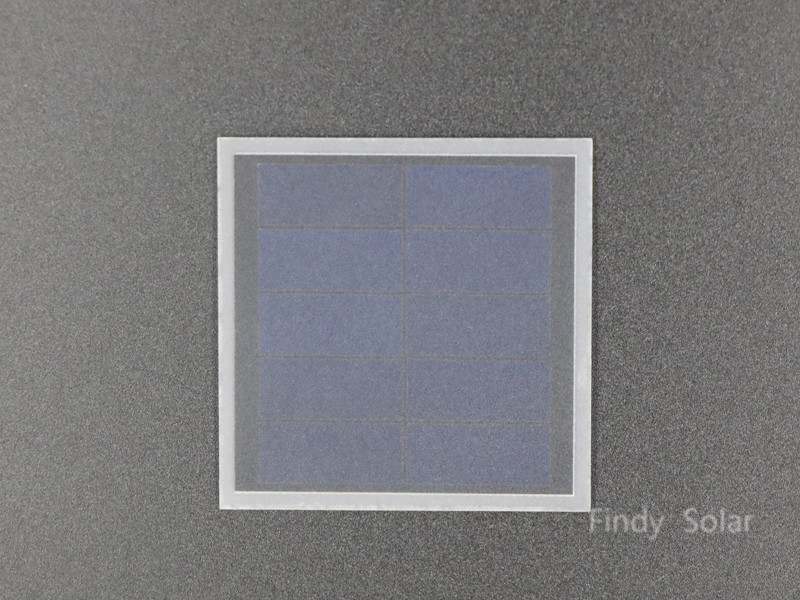

This 5V 80mA PET solar panel is built with high-efficiency back contact solar cells, delivering up to 23% efficiency. There are no grid lines on the surface of the solar panel. In addition to providing stable and consistent output power, it also has excellent low light performance. This custom solar panel is encapsulated with PET film, which makes it lightweight and thin. This mini solar panel 5V is also waterproof, UV and scratch resistant.

Applications:
This PET solar panel is widely used in wireless sensors, IoT devices,  crafts, toys, LED lights and other small electronics etc.

Item No.: FYD-BC0016

Technical Details

Solar Panel Output:
Peak Power (Pmax):                     0.4W
Voltage at Pmax (Vmp):                5V
Current at Pmax (Imp):                 80mA
Open Circuit Voltage (Voc):          6V
Short Circuit Current (Isc):            88mA
Power Tolerance:                          ±5%

Solar Panel Size:  55x55x2mm
Solar Cell Type:  High Efficiency Back Contact Solar Cell
Number of Cells: 10 pcs
Construction: PET/ EVA / Solar Cell / EVA / PCB


Product Warranty:                     2 Years
Storage temperature:              -20°C ~ 45°C
Working temperature:              -20°C ~ 65°C
Standard Test Conditions (STC):  1000W/m2, 1.5AM, 25°C Cell temperature
