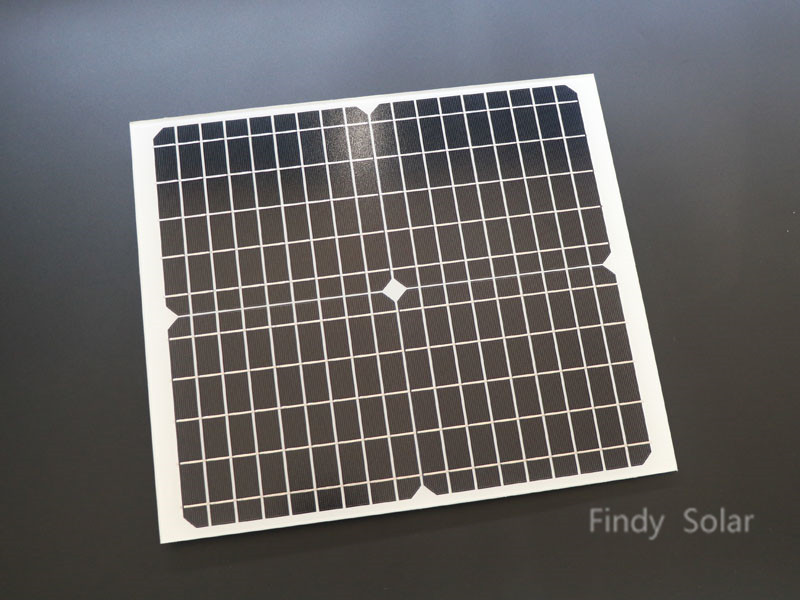

This 18V 20W customized solar panel is built with high-efficiency 5BB solar cells, delivering up to 21% efficiency. In addition to providing stable and consistent power output, it also has excellent low light performance. This solar module is encapsulated with tempered glass, which makes it more durable and ensures a longer service life. This 20W solar panel is also waterproof, UV and scratch resistant.

Applications:
This solar module is widely used in wireless sensors, IoT devices,  marine devices, traffic signs, LED lights and other small electronics devices.

Item No.: FYD-CS009

Technical Details

Output:
Peak Power (Pmax):                    20W
Voltage at Pmax (Vmp):              18V
Current at Pmax (Imp):                1.1A
Open Circuit Voltage (Voc):         23.3V
Short Circuit Current (Isc):           1.2A
Power Tolerance:                         ±5%

Dimension:  381x330x4.5mm
Cell Type:  High Efficiency Mono Solar Cell

Number of Cells: 36 pcs
Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)

Product Warranty:                     5 Years
Storage temperature:              -20°C ~ 45°C
Working temperature:              -40°C ~ 65°C
Standard Test Conditions (STC):  1000W/m2, 1.5AM, 25°C Cell temperature
