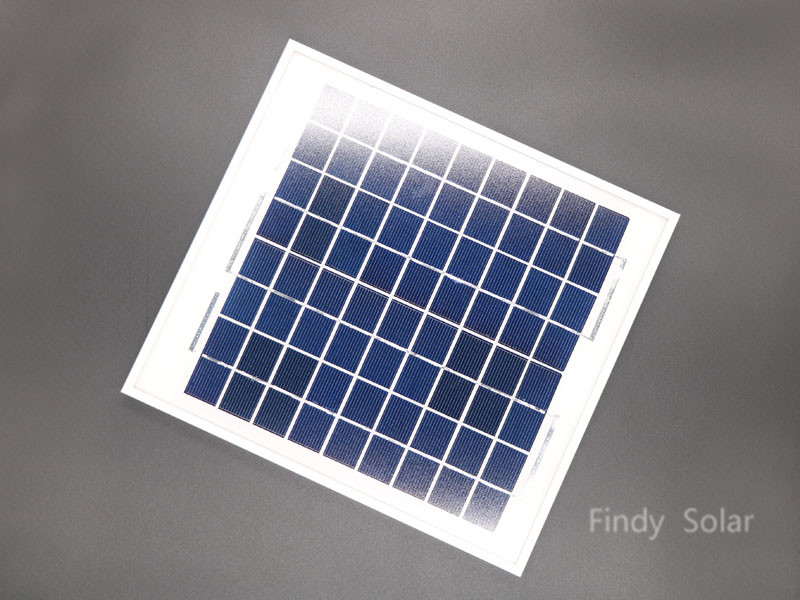

This 18V 7W tempered glass solar panel is built with high-efficiency polycrystalline solar cells. In addition to providing stable and consistent power output, it also has excellent low light performance. This custom solar panel is encapsulated with tempered glass, which makes it more durable and ensures a longer service life. This rigid solar panel is also waterproof, UV and scratch resistant.

Applications:
This tempered glass solar panel is widely used in wireless sensors, weather monitoring equipments,  LED lights and other small electronics devices.

Item No.: FYD-CS0017

Technical Details

Solar Panel Output:
Peak Power (Pmax):                     7W
Voltage at Pmax (Vmp):               18V
Current at Pmax (Imp):                 389mA
Open Circuit Voltage (Voc):          21V
Short Circuit Current (Isc):            427mA
Power Tolerance:                          ±5%

Solar Panel Size:  270x245x4.5mm
Solar Cell Type:  High Efficiency Poly Solar Cell
Number of Cells: 36 pcs
Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)

Product Warranty:                     5 Years
Storage temperature:              -20°C ~ 45°C
Working temperature:              -40°C ~ 65°C
Standard Test Conditions (STC):  1000W/m2, 1.5AM, 25°C Cell temperature
