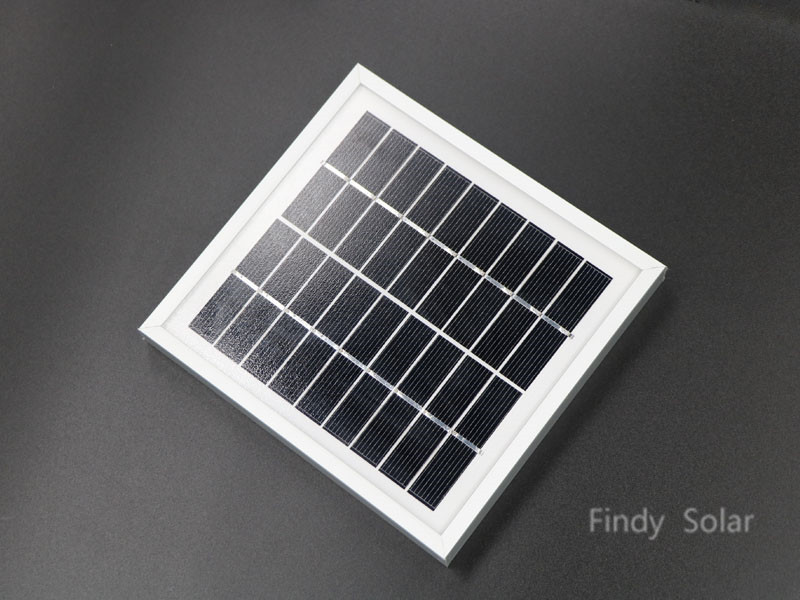

This 9V 2 watt solar panel is built with high-efficiency 5BB solar cells, delivering up to 21% efficiency. In addition to providing stable and consistent power output, it also has good low light performance. This solar mini panel is encapsulated with tempered glass, which makes it more durable and ensures a longer service life. This 2 watt solar panel is also waterproof, UV and scratch resistant.

Applications:
This custom solar panel is widely used in traffic signs, IoT devices,  marine devices, LED lights and other small electronics devices.

Item No.: FYD-CS001

Technical Details

Solar Panel Output:
Peak Power (Pmax):                     1.8W
Voltage at Pmax (Vmp):               9V
Current at Pmax (Imp):                 200mA
Open Circuit Voltage (Voc):         10.8V
Short Circuit Current (Isc):            220mA
Power Tolerance:                          ±5%

Solar Panel Dimension:  130x140x17mm
Solar Cell Type:  High Efficiency Mono Solar Cell
Number of Cells: 18 pcs
Construction: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)

Product Warranty:                     5 Years
Storage temperature:              -20°C ~ 45°C
Working temperature:              -40°C ~ 65°C
Standard Test Conditions (STC):  1000W/m2, 1.5AM, 25°C Cell temperature
